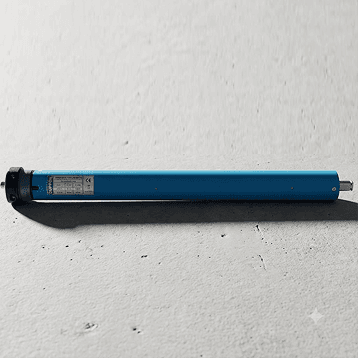

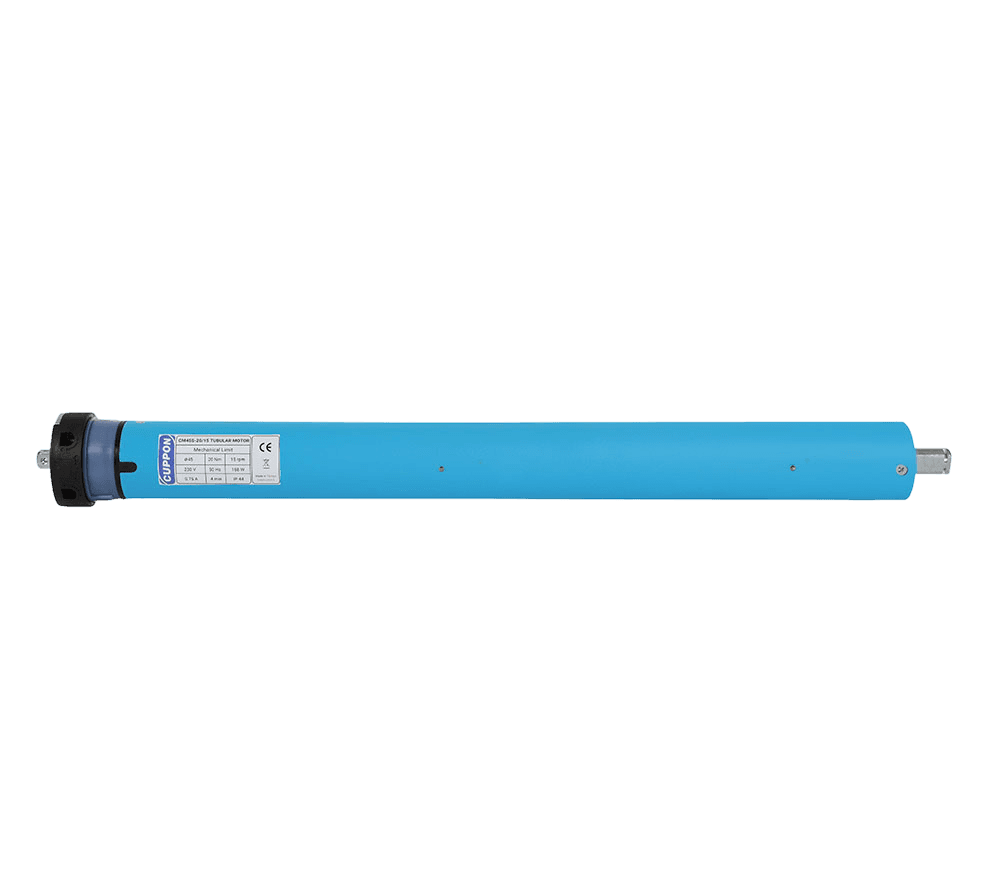

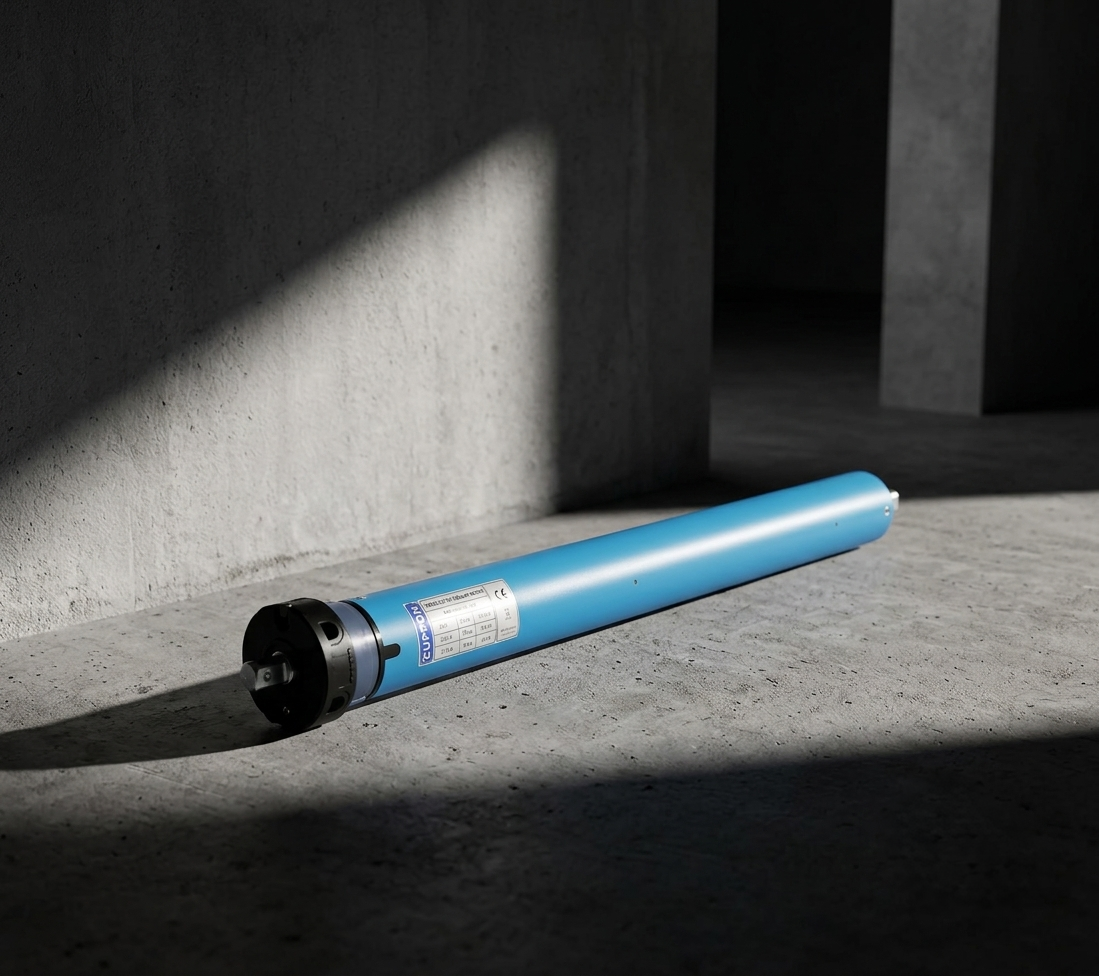

TUBO 59S-140/10
TUBULAR MOTOR WITH MECHANICAL LIMIT

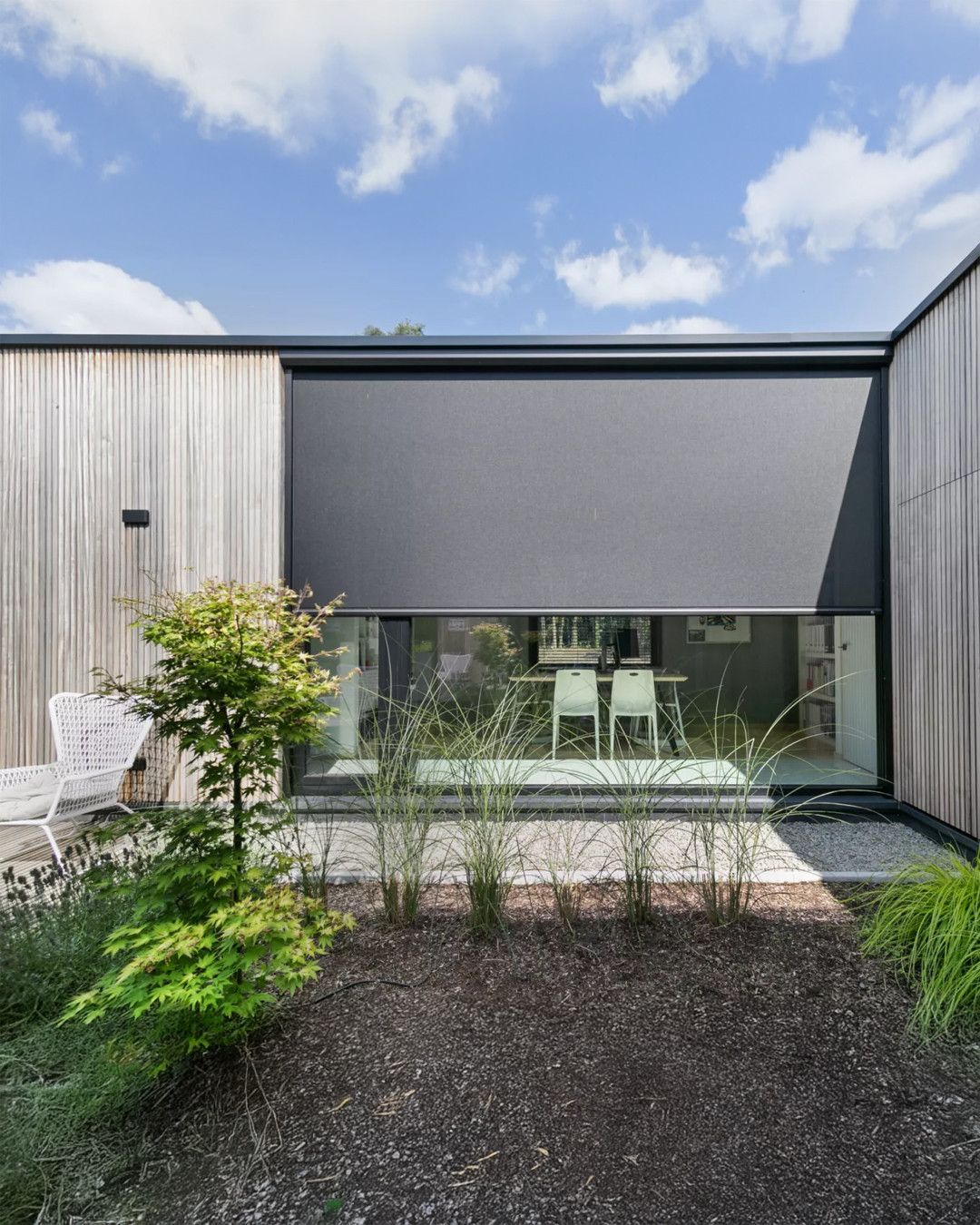

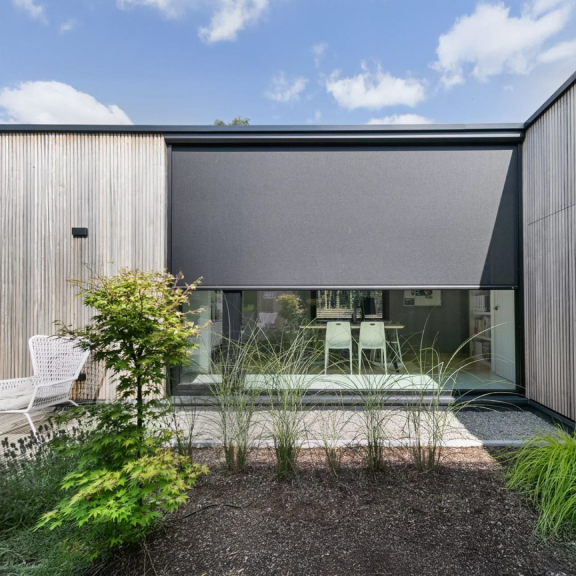

This reliable motor is designed for awnings, roller shutters, pergolas, and similar applications. It is highly resistant to all kinds of weather conditions.
- Operating voltage
- 230V / 50 Hz
- Roted speed
- 10 R/Min.
- Roted torque
- 140 N.n
- Max n° of turns
- 24
Compatible with:
BLINDS
SHUTTER
GUILLOTINE
ROLLING ROOF
PERGOLA
AWNING
Product code59S-140/10
Operating voltage230V / 50 Hz230V / 60 Hz
Rated torque140 N.m.
Rated speed10 R/Min.

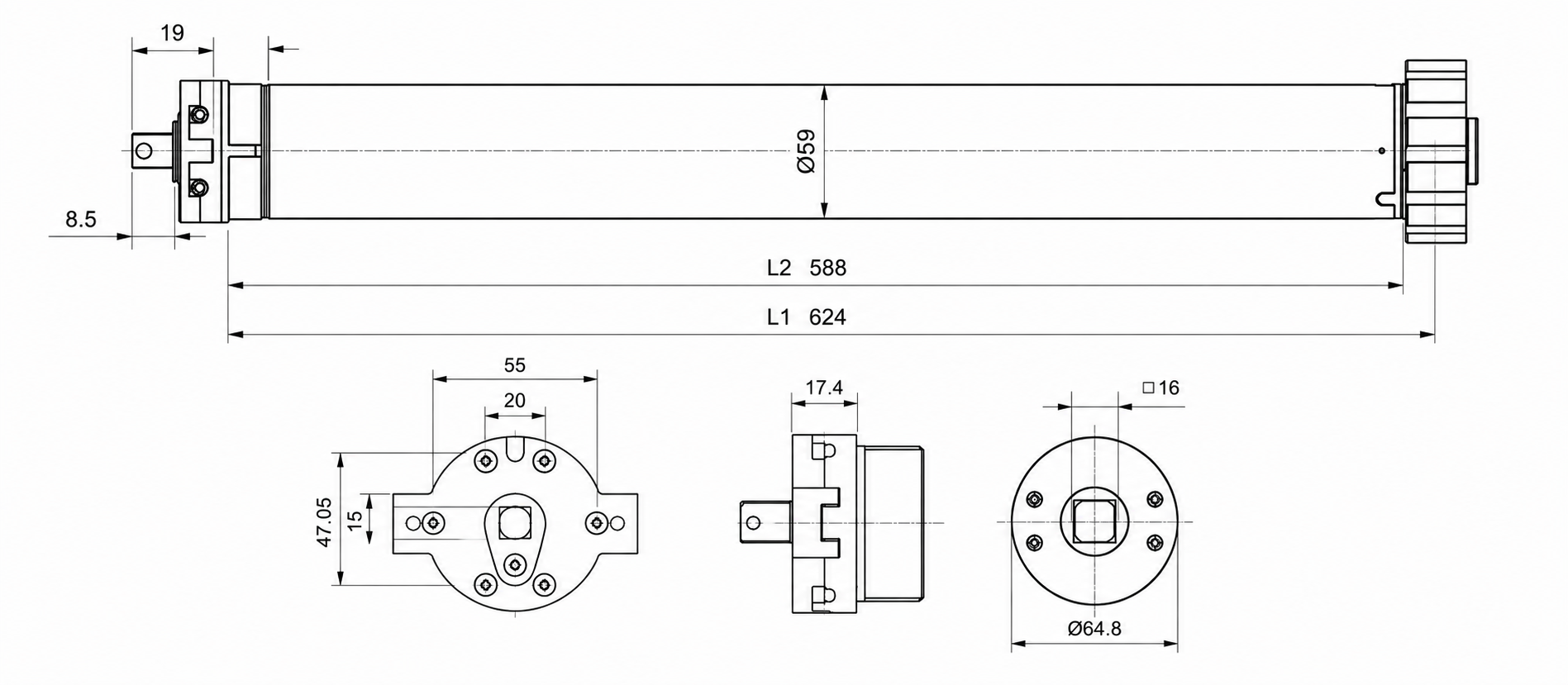

Tube diameter59 mm
Rated power input390 W
Rated current1.7 A
Operating time5 min
Max n° of turns24
Weight5 kg
IP protectionIP44
Certifications
LABEL
LABEL
LABEL
LABEL
LABEL
LABEL
LABEL
LABELLABELLABEL
LABELLABEL
INSTALLATION
Complete the kit
STILO 5
Remote controller
STILO 15
Remote controller
STILO RECEIVER
Receiver
STILO SWITCH
Switch controller
From the same category

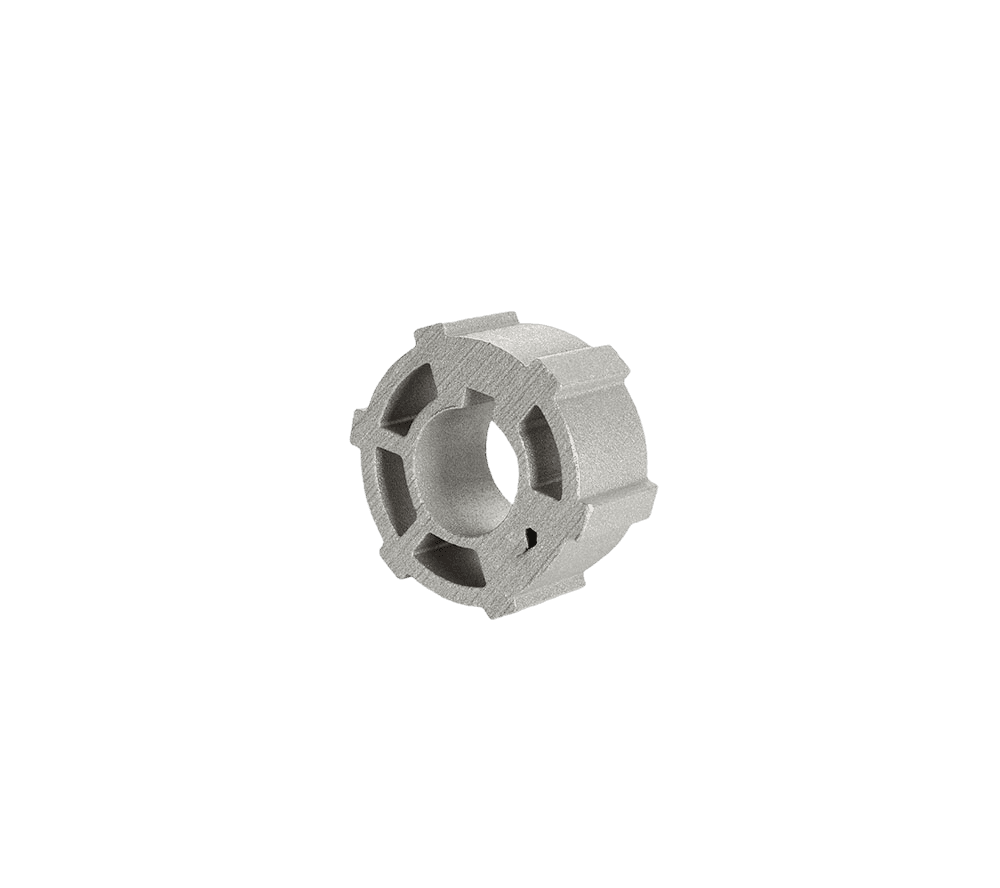

45S-20/15
