TUBO 45E-50/12

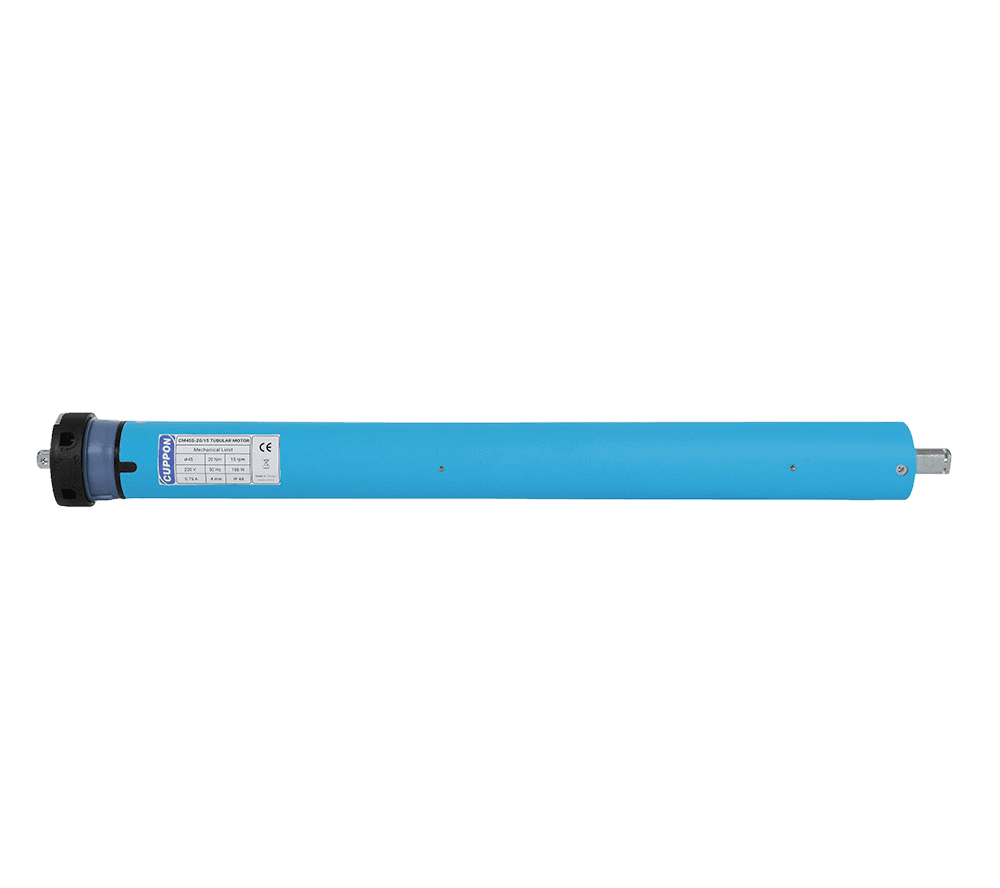

TUBULAR MOTOR WITH ELECTRONIC LIMIT + BUILT IN RECEIVER
This reliable motor is designed for awnings, roller shutters, roller blinds, and similar applications. It is highly resistant to all kinds of weather conditions.
- Operating voltage
- 230V / 50 Hz
- Roted speed
- 12 R/Min.
- Roted torque
- 50 N.n
- Max n° of turns
- 24
Compatible with:
BLINDS
SHUTTER
AWNING
Product code45E-50/12
Operating voltage230V / 50 Hz230V / 60 Hz
Rated torque50 N.m.
Rated speed12 R/Min.
Tube diameter45 mm
Rated power input240 W
Rated current1.1 A
Operating time4 min
Max n° of turns24
Weight2.3 kg
IP protectionIP44
Certifications
LABEL
LABEL
LABEL
LABEL
LABEL
LABEL
LABEL
LABELLABELLABEL
LABELLABEL

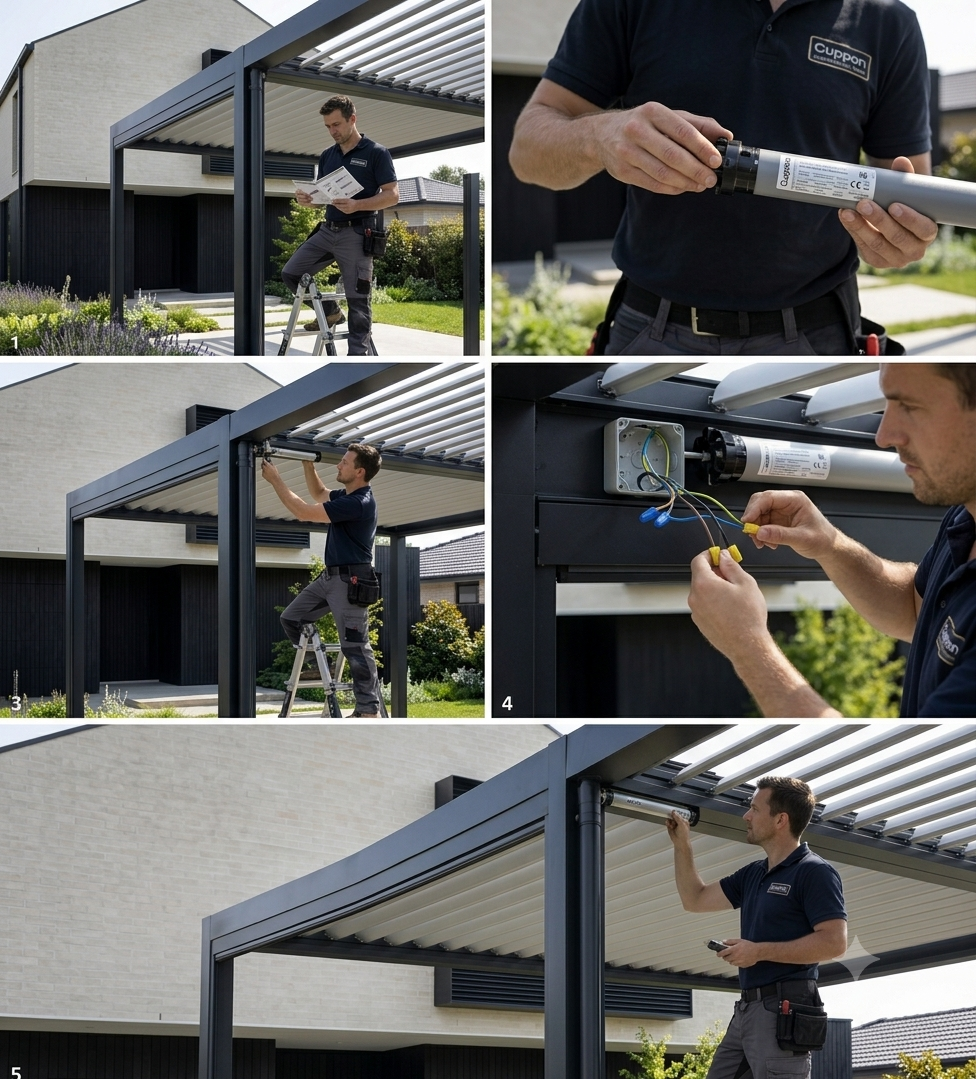

INSTALLATION
Complete the kit

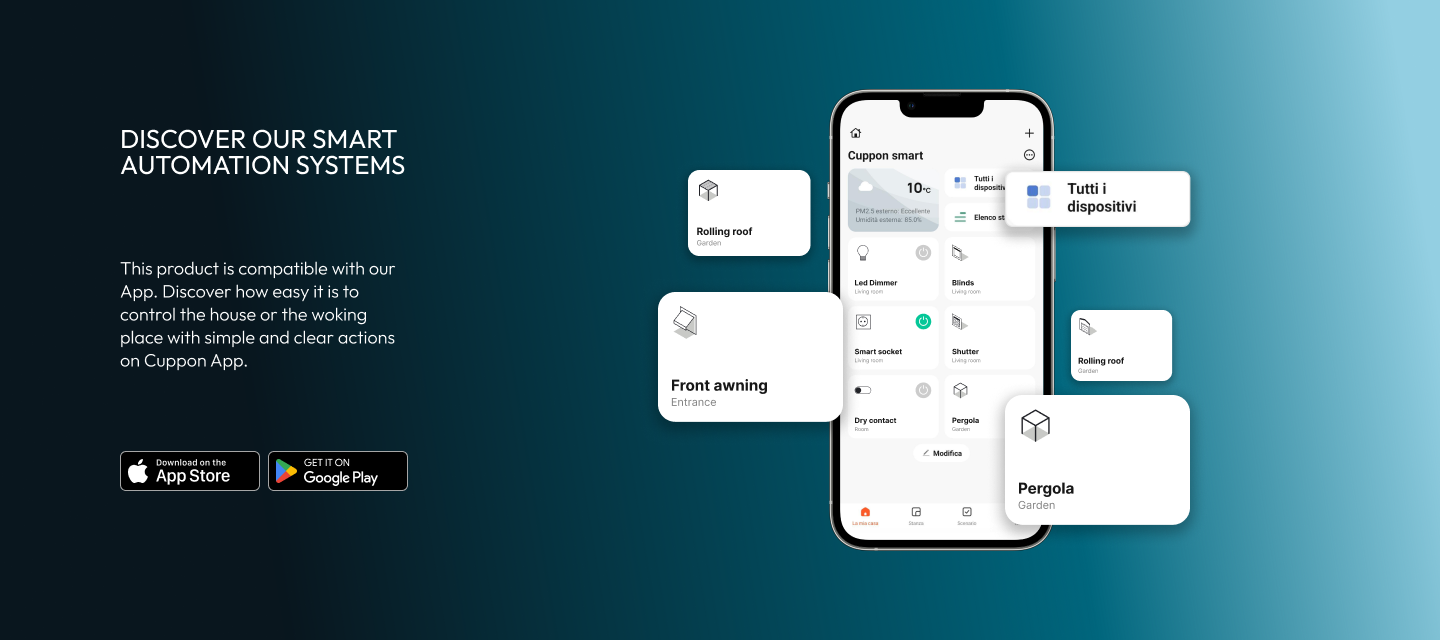

Discover our smart automation systems
This product is compatible with our App. Discover how easy it is to control the house or the working place with simple and clear actions on Cuppon App.
