45S-20/15

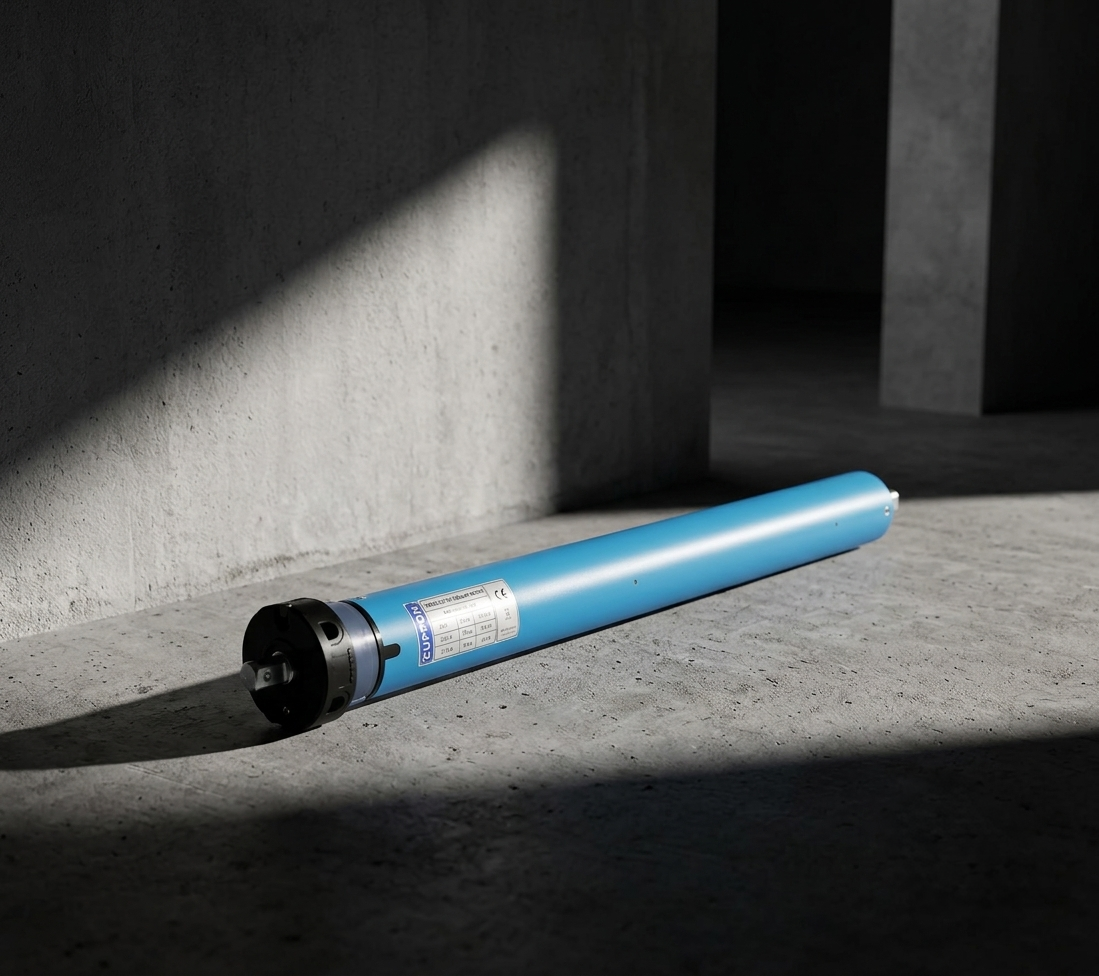

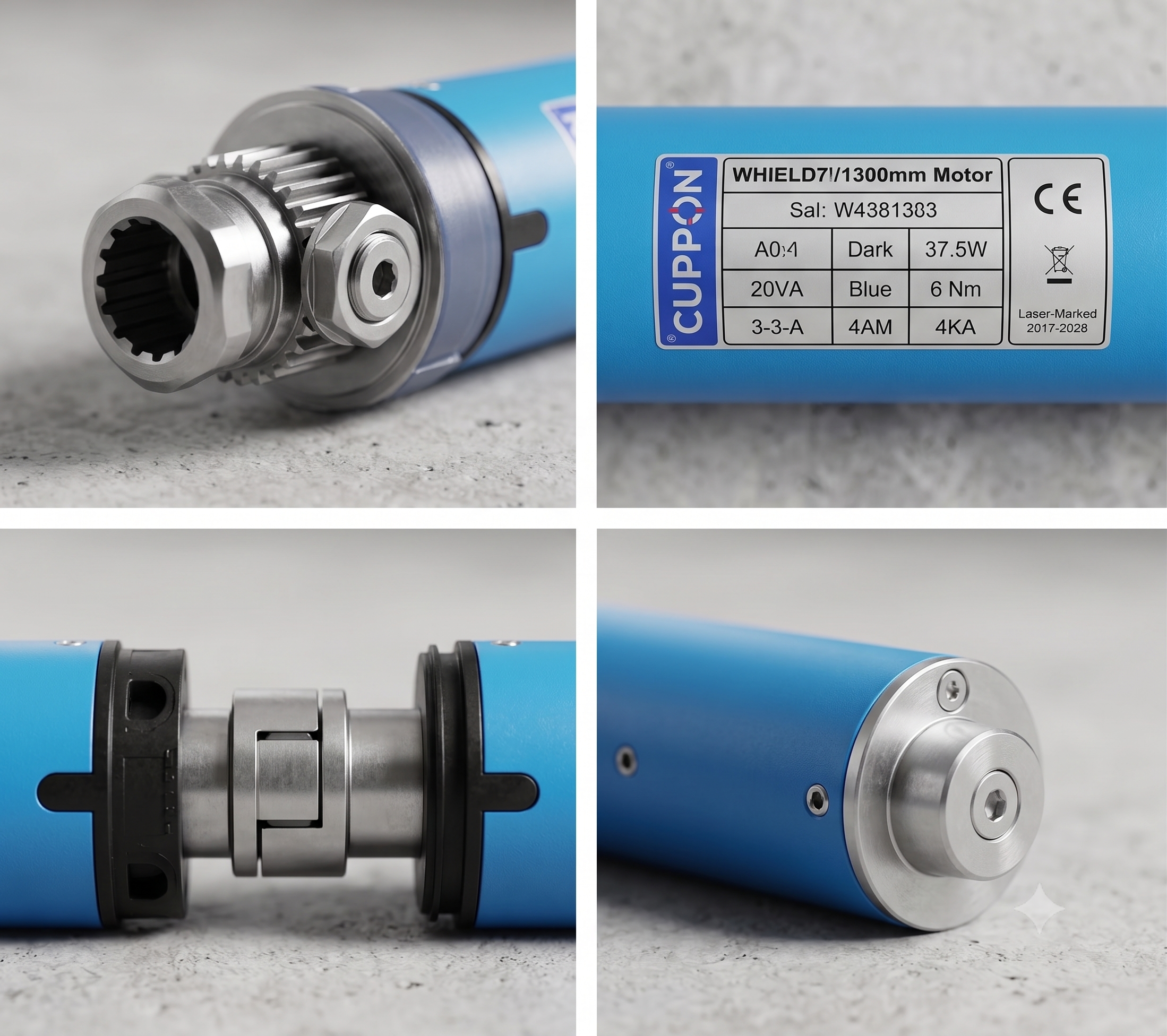

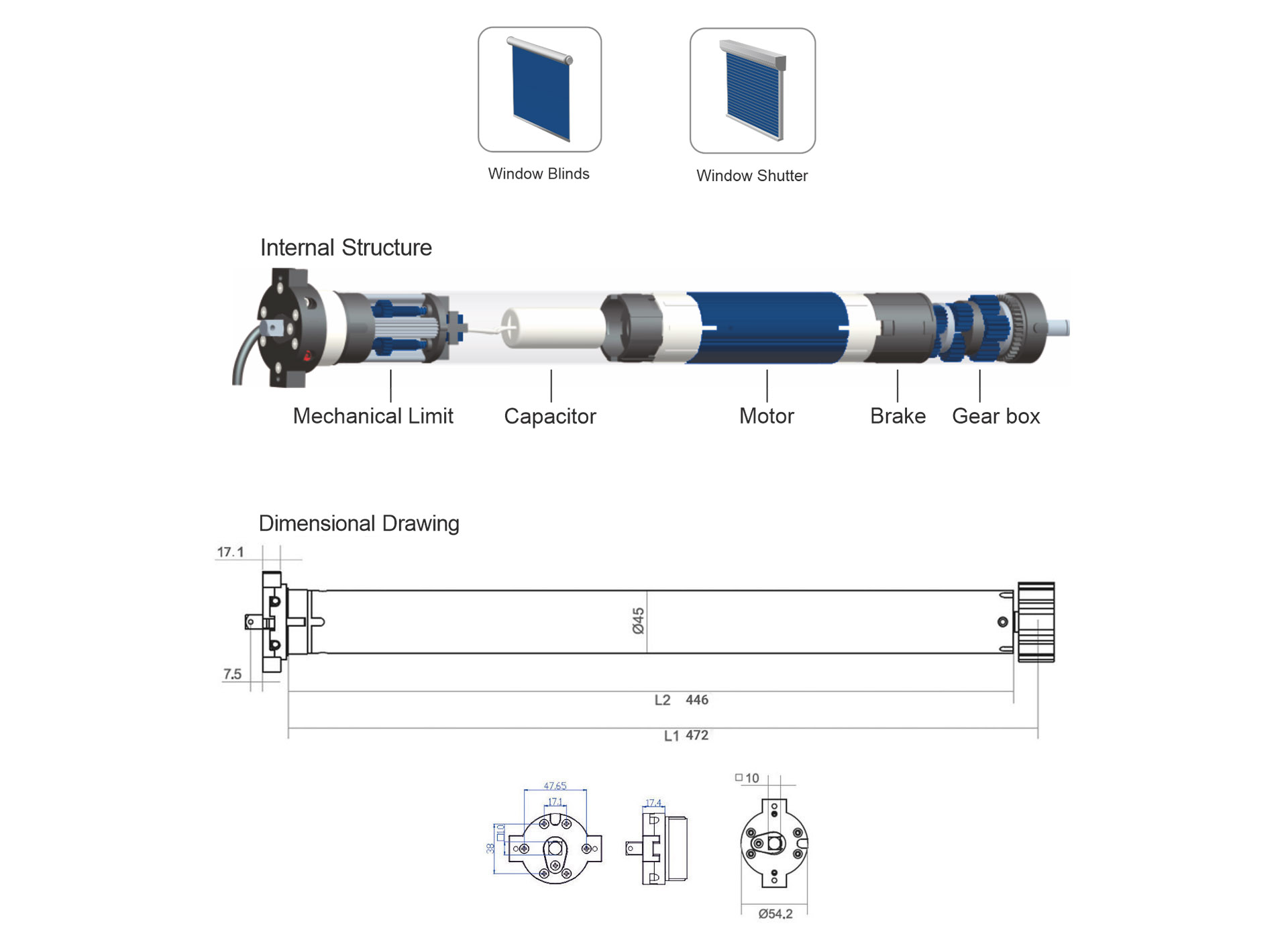

TUBULAR MOTOR WITH MECHANICAL LIMIT
This reliable motor is designed for awnings, roller shutters, roller blinds, and similar applications. It is highly resistant to all kinds of weather conditions.
- Operating voltage
- 230V / 50 Hz
- Roted speed
- 15 R/Min.
- Roted torque
- 20 N.n
- Max n° of turns
- 24
Compatible with:
BLINDS
SHUTTER
AWNING
Product code45S-20/15
Operating voltage230V / 50 Hz230V / 60 Hz
Rated torque20 N.m.
Rated speed15 R/Min.
Tube diameter45 mm
Rated power input170 W
Rated current0.78 A
Operating time4 min
Max n° of turns24
Weight2.3 kg
IP protectionIP44
Certifications
LABEL
LABEL
LABEL
LABEL
LABEL
LABEL
LABEL
LABELLABELLABEL
LABELLABEL
INSTALLATION
ManualComplete the kit
